* Size: 3'x3, 4'x3', 4'x4', 4'x5'
* Single or Double Decks
* Capacity: 4 Trays, 6 Trays, 8 Trays, 10Trays
* Tray Size: 15"x12"
* Capacity: 20 Trays
* Tray Size: 15"x12"
| Title | Description |
|---|---|
| Trays | 10 x (400x600) nr. |
| Pitch | 80 mm |
| Dimensions | 977x928x1193 mm |
| Weight | 158 Kg |
| Voltage | 400 3N V |
| Power | 19.5 Kw |
| Motor | 3 nr. |
| Controls | Mechanical |
| Title | Description |
|---|---|
| Trays | 10 x (400x600) nr. |
| Pitch | 75 mm |
| Dimensions | 976x830x623 mm |
| Poids | 74 Kg |
| Tension | 230 1N V |
| Power | 1.5 Kw |
| Model | Bread Capacity | No. of Trays | Tray Size | Connected Load | Overall Size WDH |
|---|---|---|---|---|---|
| M 275 | 80 Bread 10 Level |
14 Trays | 18"x18" | 1.5 HP | 54"x40"x87" |
| M 365 | 120 Bread 10 Level |
14 Trays | 18"x27" | 1.5 HP | 50"x72"x87" |
| M 430 | 168 Bread 14 Level |
18 Trays | 18"x27" | 4 HP | 69"x56"x95" |
| M 600 | 336 Bread 14 Levelx2 |
36 Trays | 18"x27" | 4 HP | 84"x69"x95" |
| M 800 | 672 Bread 14 Levelx4 |
72 Trays | 18"x27" | 6.5 HP | 119"x89"x95" |
* Adjustable air systems large Baking capacity highly efficient and durable.
| Model | Bread Capacity | No. of Level | No. of Level for Other | Tray Size (Inches) | Size (cms) |
|---|---|---|---|---|---|
| Baby | 80 | 9 | 12 | 19 1/2 x 27 | 50x70 |
| Mini | 144 | 12 | 17 | 17 1/2 x 25 1/2 | 45x65 |
| Plus | 168 | 14 | 21 | 19 1/2 x 27 | 50x70 |
| Medio | 275 | 14 | 21 | 23 1/2 x 35 1/2 | 60x90 |
| Super | 375 | 14 | 21 | 31 1/2 x 39 1/2 | 80x100 |
| Maxi | 4258 | 14 | 21 | (23 1/2 x 31 1/2)x2 | 60x80 |

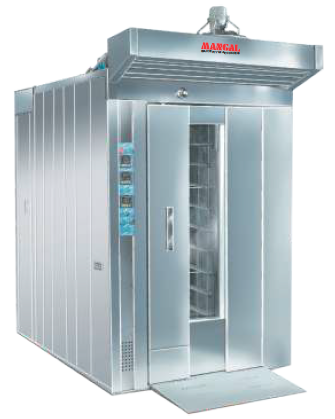

* New Roto Real SP, Oven with rotating trolley completely built in stainless steel.
* Provided with an electronic control panel of simple use with double electro mechanical controling in case of break down.
* 6 different sizes available BABY, MINI, PLUS, MEDIO, SUPER, MAXI
